Product Description

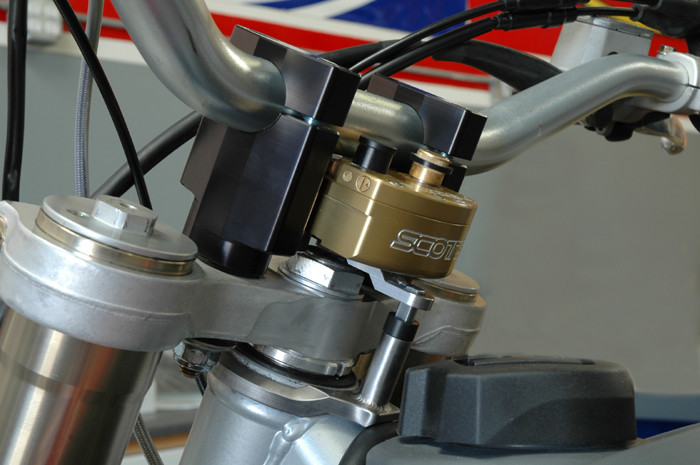

TE510 steering stabilizer parts and kits for the 2006-2007 Husqvarna TE 510: the Scott's steering stabilizer, matched to the model years Scott's lists for this bike. On the TE 510, the stabilizer mounts at the steering head and slows fast left to right movement of the bars, the shake you feel when a rock, rut or whoop tries to turn the front wheel. For these years the sub mount complete kit is part DS-SUB-6032-01 (about 3.5 lb), the sub mount triple clamp kit is part DT-SUB-4558-14 (about 5 lb) and the sub mount triple clamp kit is part DT-SUB-6032-03 (about 5 lb); 2 more options are listed below.
Kit options for the Husqvarna TE 510 (2006-2007)
- SUB Mount - Complete Stabilizer Kit - when using original triple clamps | part DS-SUB-6032-01 | about 3.5 lb
- SUB Mount - Complete Stabilizer Kit - with Triple Clamp (Weld on type) | part DT-SUB-4558-14 | price includes a Billet Triple clamp | about 5 lb
- SUB Mount - Complete Stabilizer Kit - with Triple Clamp | part DT-SUB-6032-03 | price includes Billet Triple Clamp | about 5 lb
- SUB Mount - Mount Kit Only - when using original triple clamps | part DM-SUB-6032-01 | about 3.5 lb
- Frame Bracket only (Bolt on Sub mount) | part FBD-6032 | sub mount style / under the bars | about 0.5 lb
About this TE 510 listing
Scott's lists 3 kit generations for the TE 510: 2005, 2006-2007, 2008-2010. This page covers 2006-2007. The part numbers for these years (DS-SUB-6032-01, DT-SUB-4558-14, DT-SUB-6032-03) are not used on the other generations, so match your model year before you order. For comparison, the nearest generations: 2005 uses DS-4551-11. Scott's fitment notes for this bike: price includes a Billet Triple clamp; price includes Billet Triple Clamp; sub mount style / under the bars. Part DS-SUB-6032-01 is also used on 5 other Scott's models, so check the fit by model year and not by part number alone.
Technical Details
- Fits: Husqvarna TE 510, 2006-2007
- Also searched as: TE510 stabilizer, TE 510 stabilizer, TE510 steering damper
- Stabilizer: part 4200-00 is the Scott's stabilizer sold separately and is the same for every bike; the bike-specific part is the mount kit.
Fitment
- Husqvarna TE 510 | 2006-2007 (2006, 2007)
Questions riders ask
Which kit do I need for the TE 510?
If you do not have a Scott's stabilizer yet, pick a complete kit. If you already own one, a mount kit only moves it to this bike.
Do I need new triple clamps?
Sub mount kits are listed for use with the original triple clamps on the TE 510. Triple clamp kits include a new clamp as part of the kit.
Questions riders ask
Which Scott's steering stabilizer kit fits a 2006-2007 Husqvarna TE 510?
Scott's lists 5 kit options for the 2006-2007 Husqvarna TE 510. Pick the one you want from the Kit menu on this page. A complete kit has everything you need to get a stabilizer on the bike; a mount kit only is for riders who already own a Scott's stabilizer. The kit guide has a chooser table.
What is the part number for a TE510 steering damper from Scott's?
Scott's part numbers for the 2006-2007 Husqvarna TE 510:
- SUB Mount - Complete Stabilizer Kit - when using original triple clamps: part DS-SUB-6032-01
- SUB Mount - Complete Stabilizer Kit - with Triple Clamp (Weld on type): part DT-SUB-4558-14
- SUB Mount - Complete Stabilizer Kit - with Triple Clamp: part DT-SUB-6032-03
- SUB Mount - Mount Kit Only - when using original triple clamps: part DM-SUB-6032-01
- Frame Bracket only (Bolt on Sub mount): part FBD-6032
Does a Scott's TE510 steering damper kit come with the mounts?
The complete kit does. Scott's lists a complete kit as the one with everything you need to get a stabilizer on the bike, and a mount kit only as the part for riders who already own a Scott's stabilizer. Both are options for the 2006-2007 Husqvarna TE 510 on this page.
What does a TE510 steering stabilizer do?
On the TE 510, the stabilizer mounts at the steering head and slows fast left to right movement of the bars, the shake you feel when a rock, rut or whoop tries to turn the front wheel.
Is the Scott's stabilizer for the TE510 the same as on other bikes?
Almost always. The stabilizer is part 4200-00, and the mount is the part that changes from bike to bike. See the Scott's 4200-00 stabilizer.
Can I move my Scott's stabilizer to a 2006-2007 Husqvarna TE 510?
Scott's says yes, with a mount kit for the new bike. For the 2006-2007 Husqvarna TE 510, the mount kit only part: DM-SUB-6032-01.
What is a tank slapper, and do I need a steering stabilizer on my Husqvarna TE 510?
A tank slapper is a fast side to side shake of the handlebars. Our guides explain what causes it and how to decide whether you need a stabilizer: tank slappers, speed wobble and head shake and do you need a steering stabilizer.
Will a Scott's steering stabilizer fit my Husqvarna TE 510?
Fit depends on the model year. This page covers 2006-2007 of the Husqvarna TE 510. Choose your year in the fitment bar and match the part number on the kit to your bike. Part numbers are explained in the kit guide.
How do I set the damping on a TE510 steering stabilizer?
Scott's says its off-road units damp as the bars turn away from center and let them return freely. Scott's also says the damping is adjustable, including while riding. The install guide covers settings.
How do I service a Scott's TE510 steering stabilizer?
Scott's says to treat it like suspension, with an occasional oil change depending on how hard you ride. See the service guide.
