Product Description

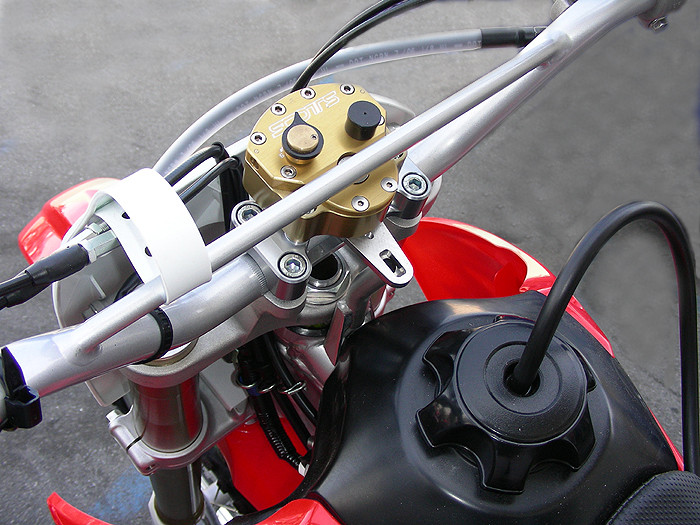

XR400R steering stabilizer for your Honda XR 400 R: this page covers the 1996-2004 bikes and shows a complete kit, a triple clamp kit, a mount kit only, a frame bracket and a bar clamp from Scott's Performance. It is a small hydraulic damper at the steering head of your XR 400 R: oil moves through adjustable valving, so hard hits are taken out of the bars before they reach your hands. For these years the weld-on complete kit is part DS-4553-00, the bolt-on complete kit is part DS-4600-00 and the sub mount triple clamp kit is part DM-SUB-4600-20 (about 4.5 lb); 11 more options are listed below.
Kit options for the Honda XR 400 R (1996-2004)
- Weld-On - Stabilizer Kit Complete | part DS-4553-00
- Bolt-On - Stabilizer Kit Complete | part DS-4600-00
- SUB Mount - Mount Kit Only - with Triple Clamp | part DM-SUB-4600-20 | price includes Scotts Triple Clamp | about 4.5 lb
- Triple Clamp kit with Stabilizer (Weld-on kit) | part DT-7058-4553 | price includes Billet Triple clamp
- Triple Clamp kit with Stabilizer-STD | part DT-7058-4600 | price includes Billet Triple clamp
- Triple Clamp kit with Stabilizer-FWD | part DT-7058-4600-10 | price includes Billet Triple clamp | about 7.5 lb
- SUB Mount - Complete Stabilizer Kit - with Triple Clamp | part DT-SUB-4600-20 | price includes Billet Triple Clamp | about 3.5 lb
- Weld-On - Mount Kit Only | part DM-4553-00
- Bolt-On - Mount Kit Only-STD type | part DM-4600-00
- Bolt-On - Mount Kit Only-FWD type | part DM-4600-10 | includes a billet triple clamp | about 3 lb
- Frame Bracket only (Bolt-on Top mount) | part FBD-4600 | mounts to oil filler area
- Frame Bracket only (Bolt-on Fwd mount) | part FBD-4600-10 | forward mount (in front of triple clamp | about 0.6 lb
- Frame Bracket only (Bolt-on Sub mount) | part FBD-4600-20 | bolt on Sub mount | about 0.6 lb
- Bar Clamp only | no part number listed
About this XR 400 R listing
Scott's lists a single kit generation for the XR 400 R, so this page covers every model year from 1996 to 2004. The part numbers on this page are DS-4553-00, DS-4600-00, DM-SUB-4600-20. Scott's fitment notes for this bike: price includes Scotts Triple Clamp; price includes Billet Triple clamp; price includes Billet Triple Clamp. This page offers weld-on, bolt-on, sub mount, top mount mounting.
Technical Details
- Fits: Honda XR 400 R, 1996-2004
- Also searched as: XR400R stabilizer, XR 400 R stabilizer, XR400R steering damper
- Stabilizer: the stabilizer on its own (part 4200-00) is the same on every bike; the mount kit is what changes by bike.
Fitment
- Honda XR 400 R | 1996-2004
Questions riders ask
Which kit do I need for the XR 400 R?
If you do not have a Scott's stabilizer yet, pick a complete kit. If you already own one, a mount kit only moves it to this bike.
Do I need new triple clamps?
Sub mount kits are listed for use with the original triple clamps on the XR 400 R. Triple clamp kits include a new clamp as part of the kit.
Questions riders ask
Which Scott's steering stabilizer kit fits a Honda XR 400 R?
Scott's lists 14 kit options for the Honda XR 400 R (all years). Pick the one you want from the Kit menu on this page. A complete kit has everything you need to get a stabilizer on the bike; a mount kit only is for riders who already own a Scott's stabilizer. The kit guide has a chooser table.
What is the part number for a XR400R steering damper from Scott's?
Scott's part numbers for the Honda XR 400 R (all years):
- Weld-On - Stabilizer Kit Complete: part DS-4553-00
- Bolt-On - Stabilizer Kit Complete: part DS-4600-00
- SUB Mount - Mount Kit Only - with Triple Clamp: part DM-SUB-4600-20
- Triple Clamp kit with Stabilizer (Weld-on kit): part DT-7058-4553
- Triple Clamp kit with Stabilizer-STD: part DT-7058-4600
- Triple Clamp kit with Stabilizer-FWD: part DT-7058-4600-10
7 more kit options with part numbers are listed in the Kit menu on this page.
1 option on this page, such as a bar clamp only, has no part number listed by Scott's, so it is not shown here.
Does a Scott's XR400R steering damper kit come with the mounts?
The complete kit does. Scott's lists a complete kit as the one with everything you need to get a stabilizer on the bike, and a mount kit only as the part for riders who already own a Scott's stabilizer. Both are options for the Honda XR 400 R on this page.
What does a XR400R steering stabilizer do?
It is a small hydraulic damper at the steering head of your XR 400 R: oil moves through adjustable valving, so hard hits are taken out of the bars before they reach your hands.
Is the Scott's stabilizer for the XR400R the same as on other bikes?
Almost always. The stabilizer is part 4200-00, and the mount is the part that changes from bike to bike. See the Scott's 4200-00 stabilizer.
Can I move my Scott's stabilizer to a Honda XR 400 R?
Scott's says yes, with a mount kit for the new bike. For the Honda XR 400 R, the mount kit only parts: DM-SUB-4600-20, DM-4553-00, DM-4600-00.
What is a tank slapper, and do I need a steering stabilizer on my Honda XR 400 R?
A tank slapper is a fast side to side shake of the handlebars. Our guides explain what causes it and how to decide whether you need a stabilizer: tank slappers, speed wobble and head shake and do you need a steering stabilizer.
Will a Scott's steering stabilizer fit my Honda XR 400 R?
Fit depends on the model year. This page covers all years of the Honda XR 400 R. Choose your year in the fitment bar and match the part number on the kit to your bike. Part numbers are explained in the kit guide.
How do I set the damping on a XR400R steering stabilizer?
Scott's says its off-road units damp as the bars turn away from center and let them return freely. Scott's also says the damping is adjustable, including while riding. The install guide covers settings.
How do I service a Scott's XR400R steering stabilizer?
Scott's says to treat it like suspension, with an occasional oil change depending on how hard you ride. See the service guide.
