Product Description

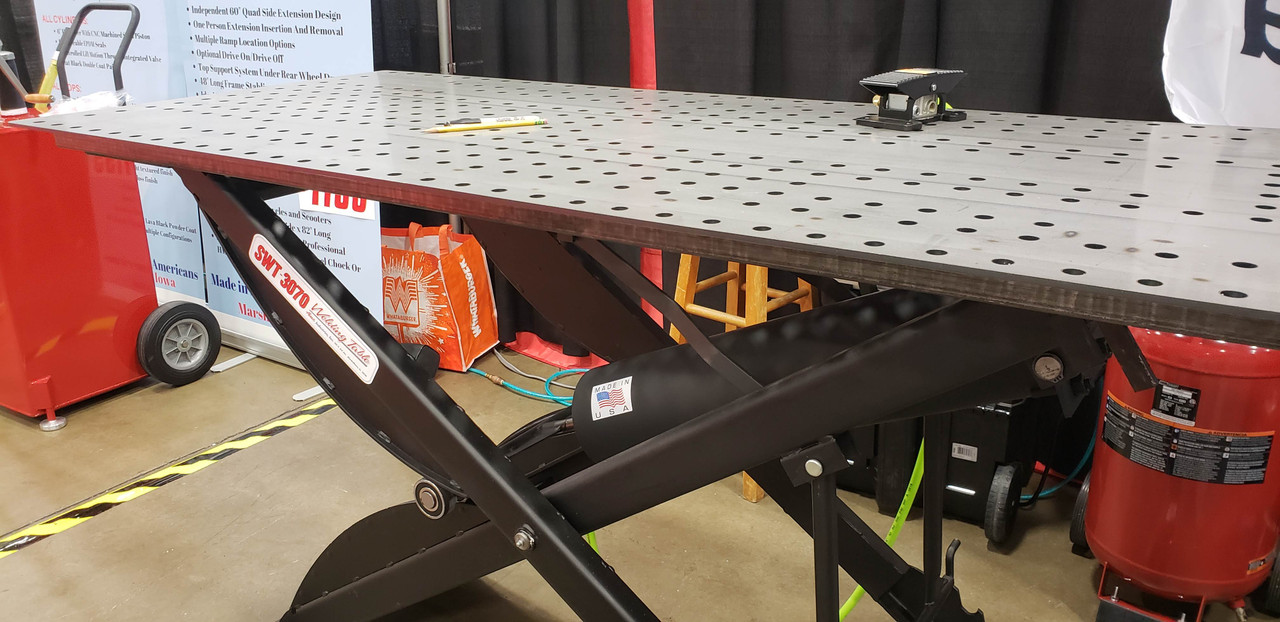

This HMC welding table gives you a full 30 inch by 70 inch steel top that raises and lowers to match the job in front of you. The table has 7 height settings, from about 23 inches up to 40 inches, and holds up to 1,200 pounds of work and fixturing on top. Sit down for detail work, stand up for bigger fabrication jobs, and switch between them on the same table instead of buying two. The quarter-inch steel top is drilled with 5/8 inch holes across the whole surface, so you can bolt down clamps, jigs, and fixtures anywhere you need them, not just at fixed points. Phenolic wheels let you roll the table around the shop floor without leaving marks behind.
Technical Specifications
- Load Capacity: 1,200 lbs.
- Top Size: 30" x 70"
- Top Thickness: 1/4" steel
- Height Settings: 7 positions, from about 23" to 40"
- Hold-Down Holes: 5/8", spaced across the full top
- Wheels: Phenolic, non-marking
- Height Adjustment: Air-powered, controlled by a foot valve
What's Included
- Welding table with adjustable-height frame
- Phenolic wheels
- Air hose whip and foot valve
Shipping
- Free Shipping — freight is included in the listed price, no separate charge at checkout
- Ships via freight carrier in a protective crate
✓ Setup Note: You need a shop air line to change the table's height. Check that you have air access near where the table will sit before you order.
⚠ Order Notice: [LEAD TIME TBD — confirm build/ship timeline with HMC].
