Product Description

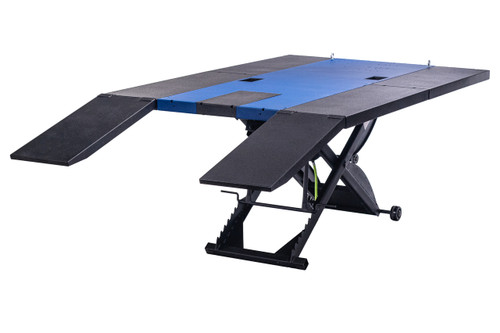

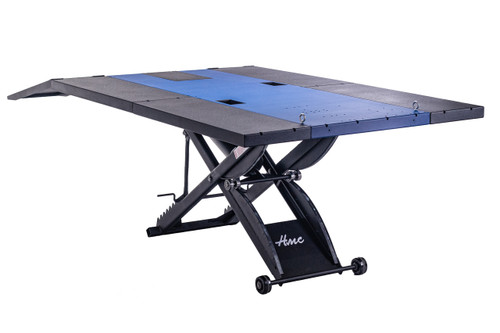

This lift table gives you a 30 inch by 90 inch platform that holds up to 1,200 pounds. It comes with a 32 inch ramp sized for everything from small scooters to full-size cruisers. The table ships right side up and ready to connect to air, so you don't have to flip it over when it arrives. As your shop grows, you can turn this same table into a 4-wheel or trike lift later. Just add Quad Side Extensions and a second ramp — you keep using the same frame the whole time, so nothing you bought goes to waste.
Technical Specifications
- Weight Capacity: 1,200 lbs.
- Table Size: 30" Wide x 90" Long
- Closed Height: 7 1/2"
- Ramp: 15" x 32", single ramp included
- Frame: 1/4" C-Channel with heavy-duty support gussets, 1" greaseable pivot pins
- Table Top: Heavy-gauge fully boxed steel
- Wheels: Phenolic, non-marking
- Top Colors: Matte Black, Thunder Blue, Matte Red, Unfinished, or Custom Color
- Origin: Made in Marshalltown, Iowa, USA
What's Included
- Lift frame and top
- 1 ramp
- Air hose whip and center-stop air foot valve
- Rear wheel dropout

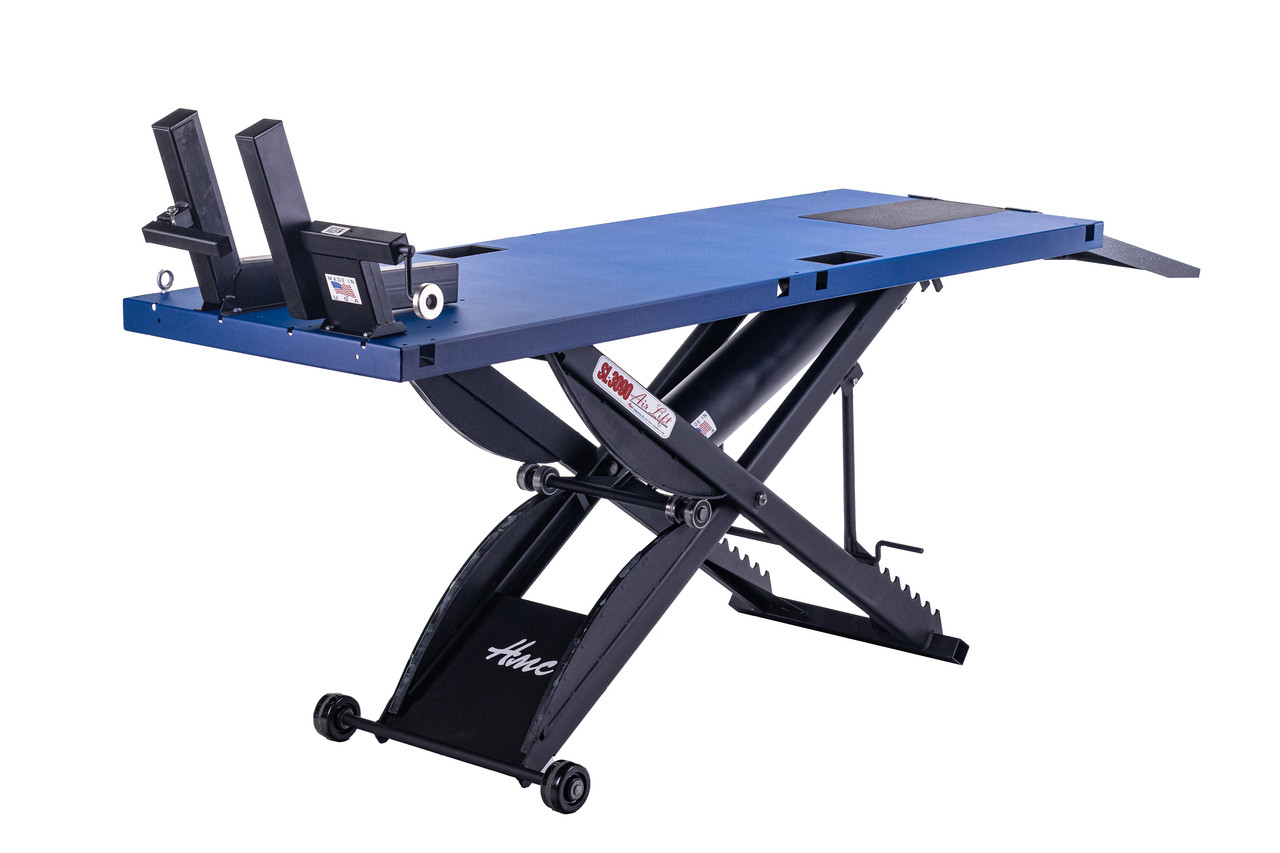

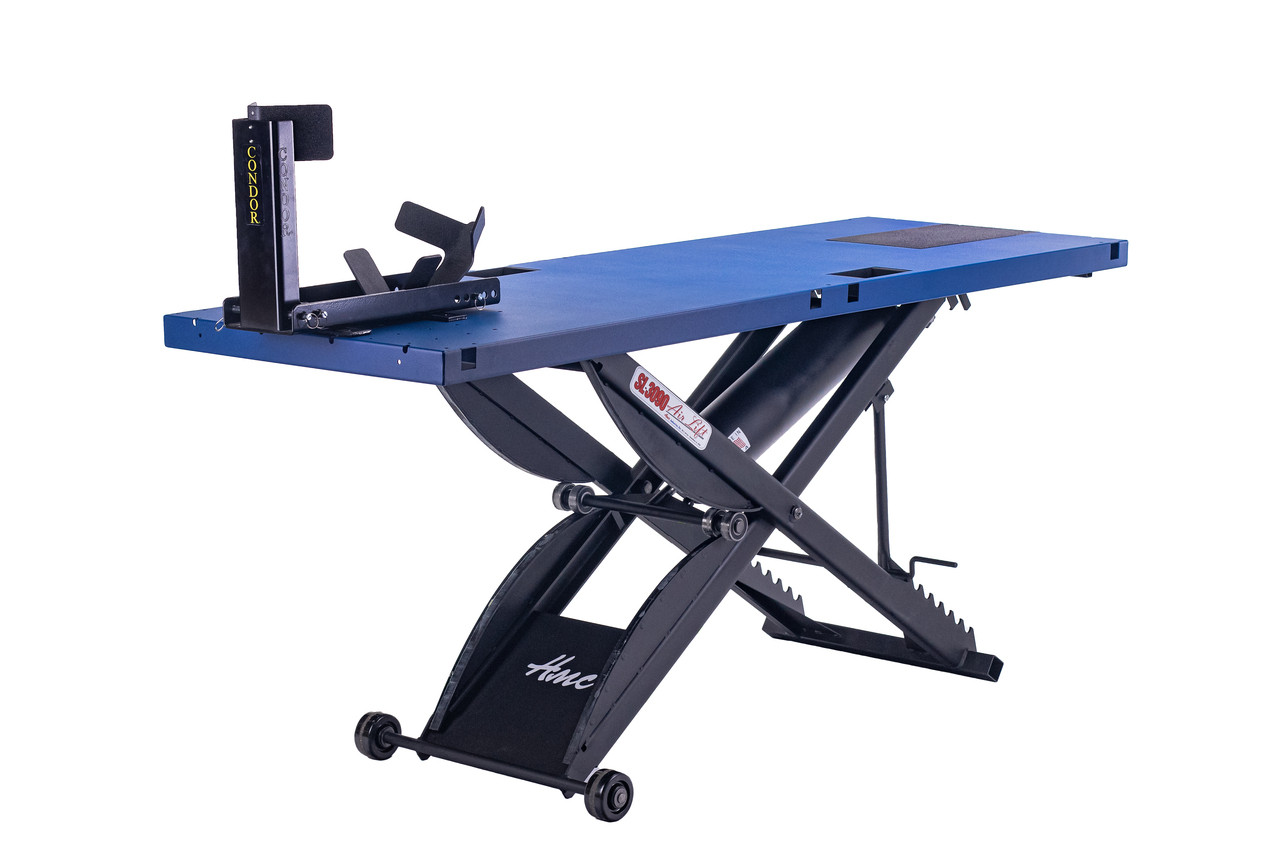

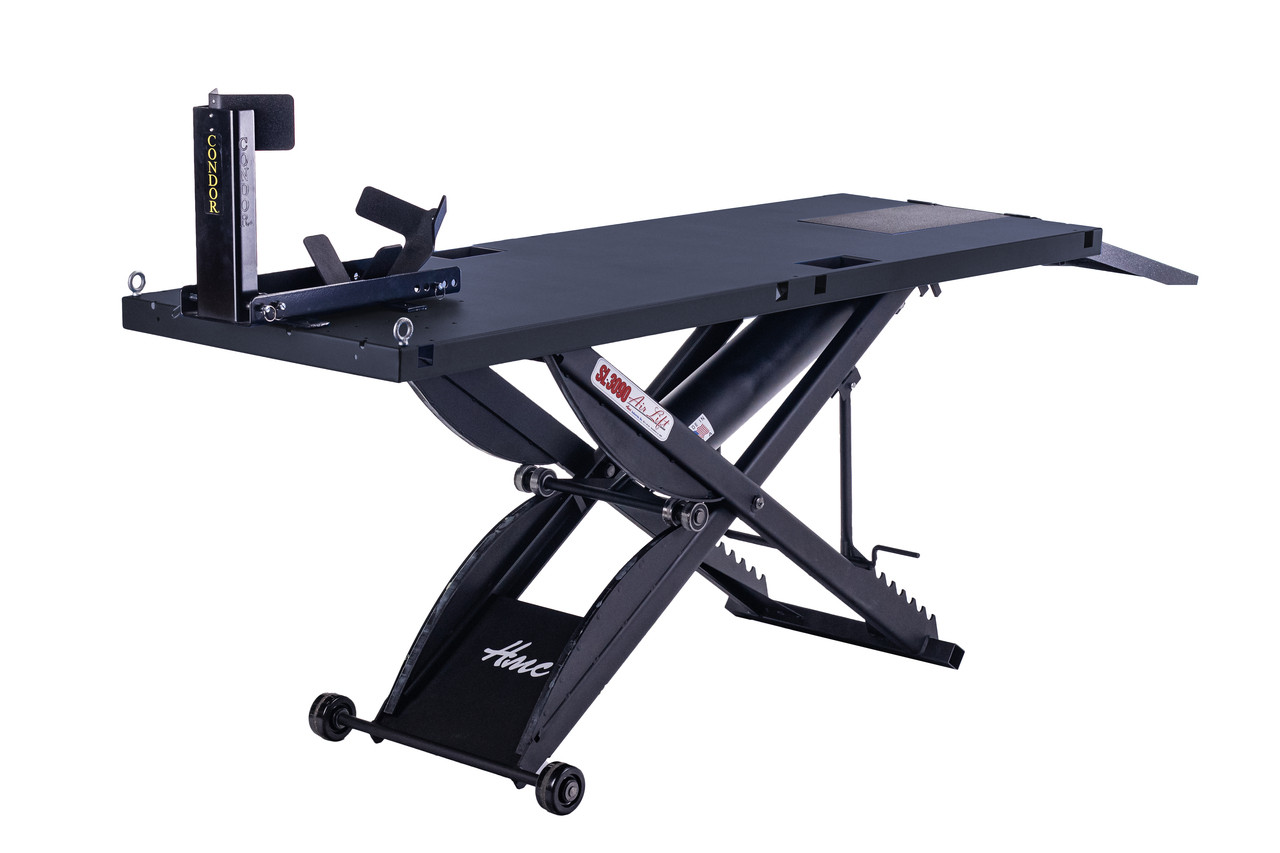

- Cycle Vise or Wheel Chock mount-ready (sold separately)
Shipping
- Free Shipping — freight is included in the listed price, no separate charge at checkout
- Ships via freight carrier in HMC's protective crate, right side up — no flip required on delivery
✓ Color Note: Custom Color top adds $200; Unfinished top deducts $100. The frame and cylinder are finished in flat black paint no matter which top color you pick.
⚠ Order Notice: [LEAD TIME TBD — confirm build/ship timeline with HMC]. Setup is simple — connect your air supply to the 1/4" brass nipple and the table is ready to raise and lower.
