Product Description
Your speedometer doesn't actually measure your speed, it counts pulses from a sensor on your wheel or gearbox and calculates speed based on your stock tire size and gearing. Change any of that, a bigger rear tire, different sprockets, a gearing swap, and the reading goes wrong. The SpeedoHealer sits inline with that sensor signal and lets you apply a precise correction factor, so your speedometer and odometer go back to reading true no matter what you've changed on the drivetrain.
2-wire inductive sensor version: Built for bikes using a 2 wire inductive speed sensor, a different signal type than the standard SpeedoHealer reads. This version only pairs with the SH-Y06 harness kit, so double check that's the harness listed for your bike before ordering.
Key Features
- Correction steps go down to a thousandth of a percent, and the total range covers anything from a minor tire swap to a completely different final drive ratio.
- On bikes that use the speed signal to cap top speed (some Honda, Kawasaki, Yamaha, and Can-Am models fall into this), fixing the signal also removes that artificial ceiling.
- A small detachable button on the harness lets you pull up your top speed reading whenever you want it.
- Save two separate calibration settings and flip between them with one button press, useful if you swap wheels or gearing between street and track.
- Switch the display between kilometers and miles without touching a wire, right from the unit itself.
- Before you button the bike back up, a built-in test mode lets you confirm the wiring is correct.
- Runs on anywhere from 3 to 19 volts, which matters on certain Yamaha models with a lower charging voltage, and drops into standby automatically to save power.
- A 32-bit processor reads the sensor signal in real time, so there's no lag between the wheel and the display.
- Sealed and weatherproofed, with protection built in against reversed wiring, short circuits, and voltage spikes.
- Size: 50 x 30 x 17mm (1.9 x 1.2 x 0.6 inches)
- Weight: 38g

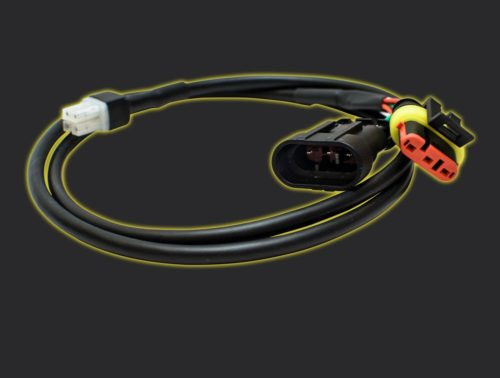

Complete kit, unit and harness bundled together. Already have the unit? Skip this and grab SpeedoHealer V4-2W Module Only or SpeedoHealer Harness Kit Only (SH-Y06) instead.
Not sure which part number your bike needs? Use the fitment search bar above, pick your Make, Model, and Year, and it'll find the right one.
FAQ
What's included when I buy this?
Both halves: the electronic unit and the bike-specific wiring harness. It's a single order that covers everything needed for installation.
Does this work with any SH harness kit?
No, this version only pairs with the SH-Y06 harness kit, so confirm that's what your bike needs before ordering.
Will this fix both my speedometer and my odometer?
Yes, but not separately, since one speed signal drives both. If your speedometer reads exactly right after calibration, your odometer might read a hair low, that's normal.
Is my speedometer electronic, or does it use a driving cable?
If there's no physical cable running to the back of your dash, just wires, it's electronic. Nearly every modern motorcycle uses an electronic speedometer.
Do I need to reprogram it after disconnecting the battery?
No. Your calibration value is stored in flash memory and stays put even if you pull the battery.
