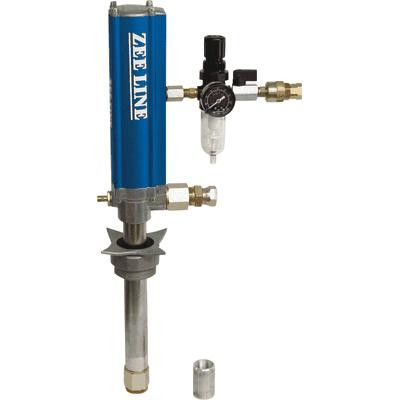

Zee Line Pneumatic Oil Pump With Power Valve For 55-Gallon Drums, Model# 1712

Product Description

This Zee Line pneumatic oil dispensing system is designed for use with 55-gallon drums and includes a 3:1 ratio air pump along with a power pump valve with auto-closing spigot. Provides a clean, compact user-friendly means to control dispensing of oil while keeping work environment clean.

Features & Benefits

• Power valve greatly reduces risk of spills and waste
• Uses 1/4in. NPT air inlet (17.02 CFM @ 100 PSI; 145 PSI max.)
• 3/4in. NPT fluid inlet and outlet
• Includes air line filter with nighttime drain, regulator, gauge, ball valve and quick disconnects and a 4-ft. air hose
• Fluid travels through 22.5in. extension tube that eliminates need for bulky hoses and reels

What&#39s Included

• (1) Pump

Key Specifications

• Flow (GPM) : 5
• Average Air Consumption (CFM) : 17.02
• Operating PSI : 100
• Max. PSI : 145
• Air Inlet Size (in. NPT) : 1/4
• Inlet Port (in.) : 3/4
• Outlet Port (in.) : 3/4
• Pump Tube (dia.) : 1/2
• Pump Tube Length (in.) : 22 1/2
• Hose (in. x ft.) : 1/2 x 4
• Dimensions L x W x H (in.) : 24 x 9 x 9
• Manufacturer Warranty : 5 year limited warranty
• Ship Weight : 13.0 lbs
• Item# : 109638
