Product Description

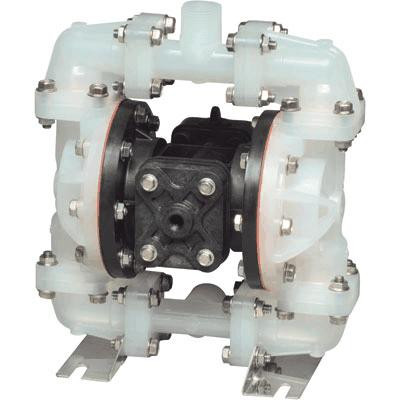

This Sandpiper Air-Operated double diaphragm pump features an externally serviceable air distribution system and all-bolted construction. The self-priming pump design can run dry without damage and can deadhead against a closed discharge, eliminating need for bypass or pressure relief valves. Seal-less design and corrosion-resistant materials make pump ideal for solids handling and high suction applications. 15 GPM pump with 1/2in. inlet and outlet ports. Ideal for transferring antifreeze, ATF, light viscosity petroleum and synthetic based oil. 100 PSI max. operating pressure; includes ground capability to eliminate static discharge. U.S.A.
Features & Benefits
- Santoprene fittings
- Specific applications include sanitizing chemicals, fertilizers, moderate caustics and acids
What's Included
- (1) Pump
Key Specifications
- Flow (GPM) : 15
- Average Air Consumption (CFM) : 15
- Operating PSI : 100
- Max. PSI : 100
- Air Inlet Size (in. NPT) : 1/4
- Inlet Port (in.) : 1/2
- Outlet Port (in.) : 1/2
- Max. Fluid Temp. (deg.) : 150
- Max. Suspended Solids (in.) : 1/8
- Dimensions L x W x H (in.) : 7 x 10 x 12
- Manufacturer Warranty : 5 year limited warranty
- Ship Weight : 16.0 lbs
- Item# : 109761
