Product Description

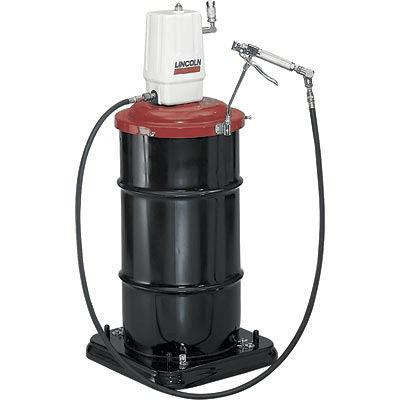

QUIETER than OSHA noise level requirements! Springless, pre-lubricated air motor has internal muffler and needs no external oiler. Handles all grades of lubricants. Follower plate assures positive prime at lowest temp. Nitrided steel plunger and bushing resist abrasion and prolong pump life. Rugged air coupler, heavy duty high pressure control valve and swivel. Shovel-type foot adds mechanical priming to normal suction. Height: 43 1/8 inch on a 120-lb. drum (not included.) Roll-around 17 x 17 inch base. U.S.A.
Key Specifications
- Flow (GPM) : 0.35
- Average Air Consumption (CFM) : 6
- Operating PSI : 40-150
- Max. PSI : 7,500
- Max. Fluid PSI : 150
- Air Inlet Size (in. NPT) : 1/4 NPTF
- Inlet Port (in.) : 1/4
- Outlet Port (in.) : 1/4
- Gear Ratio : 50:1
- Pump Tube (dia.) : 1
- Pump Tube Length (in.) : 20 7/16
- Max. Suspended Solids (in.) : None
- Hose (in. x ft.) : 7
- Dimensions L x W x H (in.) : 17 x 17 x 43 1/8
- Manufacturer Warranty : 12 months parts / 12 months labor
- Ship Weight : 45.0 lbs
- Item# : 109518
