Product Description

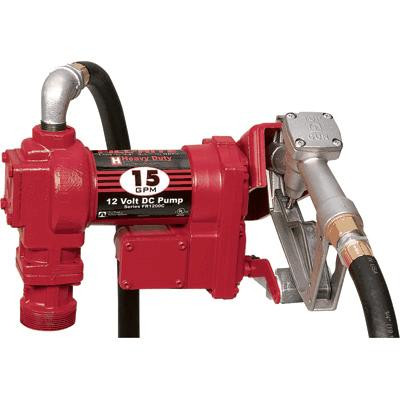

Fill-Rite Fuel Transfer Pump is an industry-standard, contractor-grade pump featuring an explosion-proof motor with permanent magnet. Steel suction pipe telescopes from 22in. to 40in. UL listed. U.S.A.
Features & Benefits
- Heavy-duty switch
- Thermal overload protection and junction box
- Heavy-duty battery cable
- Iron rotor
- Built-in strainer
- Hose with static ground wire
- Manual nozzle with nozzle boot that protects against dirt and contamination
- 2in. threaded base for tank openings
- Corrosion-proof adjustable section pipe
- Machined carbon vanes
- Pump may be padlocked
- No foot valve required
- Rain proof
- Includes manual nozzle
What's Included
- (1) Fuel transfer pump
Key Specifications
- HP : 1/4
- Watts : 187
- Flow (GPM) : 15
- Speed (RPM) : 2600
- Amps : 20
- Max. Total Head (ft.) : 37 (gasoline)
- Max. Suction Lift (ft.) : 7 (gasoline)
- Inlet Port (in.) : 1
- Outlet Port (in.) : 3/4
- Discharge (ft.) : 3/7
- Duty Cycle : 30 min.
- Self-Priming : Yes
- Bypass Valve : Yes
- Seal Type : Mechanical
- Nozzle Type : Manual
- Hose (in. x ft.) : 3/4 x 12
- Dimensions L x W x H (in.) : 12 x 9 x 9
- Manufacturer Warranty : NTE 2 years RA/Exchange Policy
- Ship Weight : 33.18 lbs
- Item# : 10957
